You’ve just bought a smart alarm kit from Amazon, ripped open the box, and now you’re staring at five different white plastic devices with no clear idea which one goes where. One looks like a tiny camera, another has two halves held together by a magnet, and there’s a small disc that apparently detects water. The instructions say “place sensor in optimal position” (the Which? home security guides are equally vague, which is why we wrote this) — cheers for that.
Smart alarm sensors are the backbone of any home security system, working alongside security cameras to give you full coverage, but nobody explains what each type actually does in plain English, or more importantly, which ones you genuinely need for a typical UK home. If you’re new to smart home tech, our beginner’s guide covers the wider ecosystem. After setting up alarm systems in half a dozen different UK homes, let’s fix that.
What Are Smart Alarm Sensors and Why Do They Matter?
A smart alarm system is only as good as its sensors. The hub — that box plugged into your router — is just the brain. Without sensors feeding it information, it’s an expensive paperweight.
Each sensor type detects a specific kind of event: movement, a door opening, glass shattering, water pooling on your kitchen floor. When a sensor picks something up, it sends a signal to the hub, which decides what to do — sound the siren, send a push notification to your phone, or trigger a camera to start recording.
The clever bit with modern smart sensors is that they’re wireless. No drilling cable channels through your Victorian terrace walls. Most run on CR123A or coin cell batteries that last one to three years, and they connect to the hub via a low-power radio protocol like Zigbee, Z-Wave or the manufacturer’s proprietary frequency.
Here’s the thing most people get wrong: you don’t need every sensor type for every home. A one-bedroom flat needs a completely different setup to a four-bed detached house with a garage and garden shed. I’ll cover what each sensor does, then tell you which ones actually matter for different situations.

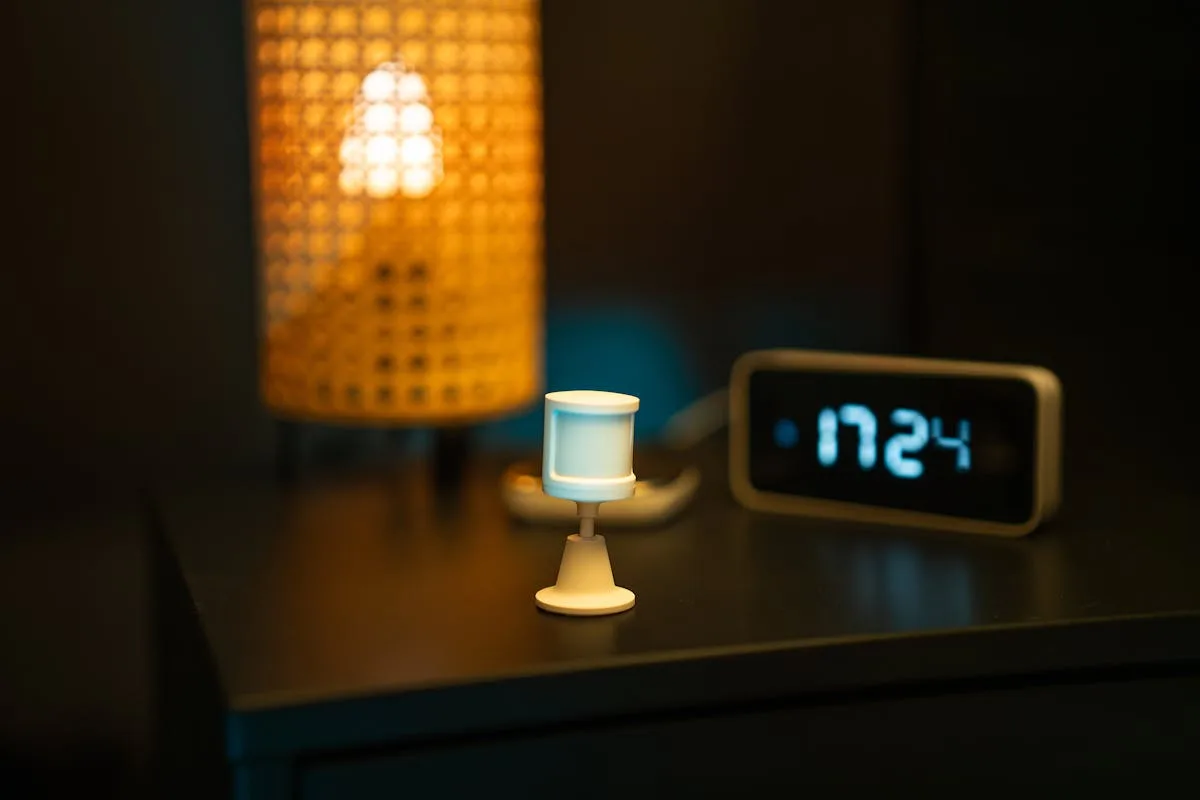

PIR Motion Sensors
How PIR Sensors Work
PIR stands for Passive Infrared. The sensor contains a pyroelectric element that detects changes in infrared radiation — the heat your body gives off as you move through a room. It doesn’t emit anything itself (that’s the “passive” part), it just watches for temperature changes against the background.
When you walk across a room, you cross the sensor’s detection zones — alternating segments that create a pattern. As your warm body moves from one zone to the next, the sensor registers the change and triggers. Most PIR sensors have a detection range of about 8-12 metres with a field of view around 90-110 degrees.
Where to Put Them
The classic mistake is pointing a PIR sensor at a window. Sunlight streaming through glass creates temperature changes that cause false alarms — and nothing will make you disable your alarm faster than it going off at 3pm every sunny afternoon.
Place PIR sensors in hallways and landings where an intruder would have to pass through. The corner of a room looking diagonally across gives the widest coverage. Mount them about 2-2.3 metres high, angled slightly downward. Most UK hallways are narrow enough that one sensor covers the entire space.
Pet-Immune PIR Sensors
If you have pets, standard PIR sensors are a nightmare. A cat jumping off the sofa or a Labrador wandering to its water bowl at 2am will trigger them constantly.
Pet-immune PIR sensors solve this by adjusting their detection threshold. They’re calibrated to ignore heat signatures below a certain size — typically animals under 25-30kg. Some use dual-element detection, requiring two zones to trigger simultaneously, which a small animal moving at floor level won’t do.
They’re not perfect. A large dog standing on its hind legs near the sensor can still trigger it. And a cat that’s decided the sensor shelf is a good sleeping spot will completely set it off. But for most households with average-sized pets, they work well enough.
UK options: The Ring Motion Detector (about £25) has a pet-immune setting. Yale’s PIR sensor (around £30) claims immunity up to 25kg. SimpliSafe’s motion sensor (about £25) handles pets up to 23kg.
Door and Window Contact Sensors
How Contact Sensors Work
These are the simplest sensors in your arsenal, and arguably the most important. A contact sensor has two parts: a magnet and a reed switch. When the two halves are close together (door or window closed), the magnetic field keeps the reed switch in one state. When they separate (door or window opens), the switch changes state and sends an alert.
That’s it. No clever electronics, no infrared detection, just a magnet and a switch. And because they’re so simple, they’re incredibly reliable. Battery life is typically two to three years because the sensor only uses power when the state changes.
Why They’re the Most Important Sensor
Here’s my controversial opinion: if you could only buy one type of sensor, forget the PIR and buy contact sensors for your external doors.
Why? A PIR sensor tells you someone is already inside your house. A door contact sensor tells you the moment someone opens an entry point. That’s earlier detection, and earlier detection means earlier response. Your phone buzzes while someone is still opening the back door, not after they’ve walked through your hallway.
For a typical UK terraced or semi-detached house, you need contacts on the front door, back door, and any accessible ground-floor windows. That’s probably four to six sensors. For a detached house, add the side door and any garage doors.
Where to Place Them
The magnet half goes on the moving part (the door or window itself), and the sensor half goes on the fixed frame. Make sure they’re within about 2cm of each other when closed — too far apart and the sensor thinks the door is open.
For sliding sash windows (common in older UK properties), place the sensor on the inner frame where the lower sash meets the upper sash. For UPVC casement windows, the frame side works fine.
UK prices: Contact sensors cost about £15-25 each. Ring’s are around £20, Yale’s about £20, and SimpliSafe’s are roughly £15.
Glass Break Sensors
How Glass Break Sensors Work
Glass break sensors listen for the specific sound frequency pattern of glass shattering. Breaking glass produces a distinctive two-part acoustic signature: a low-frequency thud (the impact) followed by a high-frequency tinkling (the glass breaking into pieces). Good sensors require both parts of this signature before triggering, which is why dropping a glass in the kitchen doesn’t usually set them off.
Some premium sensors also detect the flex frequency — the sound of glass bending just before it breaks. These are more sensitive but also more prone to false alarms.
Do You Actually Need One?
For most UK homes, probably not. Here’s my reasoning: if someone breaks a window to get in, your door/window contact sensors won’t detect it (the window stays closed — the glass just breaks). So glass break sensors fill a specific gap.
But in practice, most burglars in the UK don’t smash windows. It’s noisy, it’s risky, and it’s far easier to force a lock or jemmy a door. Glass break sensors make more sense for ground-floor flats, commercial properties, or homes with large patio doors or conservatories — anywhere glass is the easiest entry point.
If you do want one, a single sensor can cover a surprisingly large area. Most detect glass breaking within 4-7 metres, so one sensor in an open-plan living area with bifold doors covers the whole room.
UK options: Ring doesn’t currently sell a glass break sensor in the UK (they do in the US, annoyingly). SimpliSafe offers one for about £30. If you’re on a Yale system, you might need a third-party Zigbee-compatible sensor.
Water Leak Sensors
How Water Leak Sensors Work
Water leak sensors have two metal contact points on their underside. Water conducts electricity, so when the sensor is sitting in even a small puddle, the circuit between those contacts completes and the sensor triggers.
They’re beautifully simple, and I’d argue they’re the most underrated sensor you can buy for a smart home. A burst pipe or a slow leak under the kitchen sink can cause thousands of pounds in damage before you notice. Insurance companies report that the average escape-of-water claim in the UK is around £7,000 — and that’s average, meaning plenty are much higher.
Where to Put Them
Place water leak sensors where leaks are most likely and most damaging:
- Under the kitchen sink — that maze of pipes and connections is the most common leak source in UK homes
- Behind the washing machine — hose connections fail more often than you’d think
- Near the boiler — especially combi boilers with their condensate drain
- In the loft — if you have a cold water tank up there, a leak could soak through ceilings before you notice
- Under the bathroom basin — those plastic waste traps love to develop slow leaks
- Near the dishwasher — same hose issue as washing machines
What to Buy
These aren’t usually part of alarm system starter kits, which is a shame. You’ll often need to buy them separately.
The Aqara water leak sensor (about £15) works with Zigbee hubs and is excellent for the price. If you’re in the Ring ecosystem, Ring sells a flood and freeze sensor for about £30. Samsung SmartThings has a water leak sensor for around £20. Eve also makes one for Apple HomeKit users at about £35.
My pick would be the Aqara sensors — they’re cheap enough to scatter everywhere, and the battery lasts about two years.
Smoke and Heat Sensors
Smart Smoke Sensors vs Standard Ones
Since June 2022, the regulations changed in England requiring all rented properties to have smoke alarms on every floor. Scotland already had stricter rules requiring interlinked alarms — and this is where smart smoke sensors get interesting.
A standard smoke alarm beeps in the room where it detects smoke. A smart smoke alarm does that plus sends a notification to your phone, even when you’re not home. Some can also interlink wirelessly, so if one detects smoke in the kitchen, every alarm in the house goes off simultaneously.
Types of Smoke Detection
There are two main types, and they detect different things:
- Optical (photoelectric) sensors detect larger smoke particles from slow, smouldering fires — like a cigarette left on a sofa or an electrical fault. They’re better at catching fires before they become infernos.
- Ionisation sensors detect the tiny particles from fast-flaming fires. They’re quicker at detecting a chip pan fire or a flaming curtain, but they’re also more prone to false alarms from cooking or steam.
Most smart smoke alarms use optical sensors because the false alarm rate from ionisation sensors drives people to rip them off the ceiling — which defeats the purpose entirely.
Heat Sensors
Heat sensors (also called heat alarms) detect rapid temperature rises rather than smoke. They’re designed for kitchens and garages where smoke detectors would false-alarm constantly from cooking fumes or car exhaust.
UK building regulations recommend heat alarms in kitchens rather than smoke alarms. If your smart alarm system supports them, put one in the kitchen and smoke alarms everywhere else.
What to Buy in the UK
The Google Nest Protect (about £110) is the gold standard — optical smoke plus heat detection, interconnects wirelessly, speaks to tell you what it’s detected and where. Expensive, but brilliant.
For a budget option, the FireAngel range is popular in the UK and meets all the relevant British Standards. Their smart interlinked models (the Wi-Safe 2 system) start at about £30 per alarm.
If you want something that integrates with your existing smart alarm system, check compatibility first. Ring doesn’t make its own smoke sensor, but Ring Alarm works with First Alert Z-Wave smoke detectors (about £40). Yale’s smart alarm range includes a smoke detector for around £35.
UK Smart Alarm Systems Compared
Now you understand the sensors, let’s look at the main systems you can buy them for in the UK.
Ring Alarm
Ring is probably the most popular smart alarm system in the UK right now, and for good reason. The kit prices are competitive, the app is polished, and it integrates with Ring cameras and doorbells (which half the street probably already has).
- Starter kit (hub, keypad, contact sensor, motion sensor, range extender): about £180
- Individual sensors: £15-30 each
- Monitoring: optional Ring Protect Plus at £8/month includes 24/7 professional monitoring and cellular backup
- Pros: excellent app, wide sensor range, frequent Amazon discounts
- Cons: sensors are proprietary (only Ring sensors work), cloud features need a subscription
Yale Sync Smart Home Alarm
Yale has been making locks and security products for decades, so the brand recognition is strong. Their Sync system integrates with Philips Hue and works with Alexa and Google Home.
- Starter kit (hub, keypad, PIR sensor, contact sensor): about £200-250
- Individual sensors: £20-35 each
- Monitoring: Yale Smart Security subscription from about £3/month for alerts, £8/month for professional monitoring
- Pros: trusted brand, good build quality, integrates with Yale smart locks for automatic arming
- Cons: fewer sensor types than Ring, app can be a bit clunky
SimpliSafe
SimpliSafe arrived in the UK from the US a few years ago and has built a decent following. Their selling point is flexibility — no contract, and you can add professional monitoring month-by-month.
- Starter kit: from about £200
- Individual sensors: £15-30 each
- Monitoring: £13/month for interactive monitoring, or self-monitor for free
- Pros: no-contract monitoring, wide range of sensors including glass break, easy self-install
- Cons: sensors are bulky compared to Ring, less integration with other smart home kit
Hive
Hive started as a smart thermostat brand but expanded into security. If you’re already using Hive for heating (and loads of British Gas customers are), their alarm sensors integrate into the same app.
- Starter kit: about £200-280
- Individual sensors: £20-30 each
- Monitoring: included in Hive plans from about £5/month
- Pros: single app if you already have Hive heating, good sensor build quality
- Cons: smaller sensor range, less third-party integration, British Gas branding puts some people off
Which Sensors Do You Actually Need?
Right, here’s the practical bit. Forget buying one of everything — start with what matters and add later.
For a Flat or Apartment
- 2-3 door/window contact sensors (front door, any accessible windows)
- 1 PIR motion sensor (hallway or living area)
- 1 water leak sensor (under the kitchen sink)
- Total cost: about £80-130 in sensors plus the hub/kit
That’s it. A flat typically has one entry point and limited ground-floor windows. Don’t over-sensor a small space.
For a Terraced or Semi-Detached House
- 3-4 door/window contact sensors (front door, back door, accessible ground-floor windows)
- 2 PIR motion sensors (hallway and upstairs landing)
- 1-2 water leak sensors (kitchen and bathroom)
- 1 smart smoke alarm per floor
- Total cost: about £150-250 in sensors plus the hub/kit
For a Detached House
- 5-8 door/window contact sensors (all external doors, ground-floor windows, garage)
- 2-3 PIR motion sensors (hallway, landing, garage or utility room)
- 1 glass break sensor (if you have large patio doors or a conservatory)
- 3-4 water leak sensors (kitchen, bathrooms, utility room, loft if you have a tank)
- Smart smoke alarms on every floor
- Total cost: about £300-500 in sensors plus the hub/kit
Installation Tips for UK Homes
A few things specific to British properties that the American-written instruction manuals never mention:
Thick stone walls in older properties can block wireless signals between sensors and the hub. If you’re in a period cottage with 50cm stone walls, you might need a range extender — Ring and SimpliSafe both sell them for about £25.
UPVC double glazing frames are fine for mounting contact sensors. The adhesive strips work well on clean UPVC. Just make sure you degrease the surface first with a bit of isopropyl alcohol.
Sash windows need the sensor placed carefully — the two halves need to be close together when the window is shut but far enough from the sliding mechanism that they don’t get knocked off.
Listed buildings — if your property is listed, you can’t drill into original features. Use the adhesive mounts that come with every modern sensor. They hold well and don’t damage anything.
Battery life in cold spaces — if you put sensors in an unheated garage or loft, expect battery life to drop by 30-40% in winter. Lithium batteries handle cold better than alkaline ones.
Final Thoughts
Smart alarm sensors aren’t complicated once you understand what each type does. PIR sensors watch for movement, contact sensors detect doors and windows opening, glass break sensors listen for shattering, water leak sensors catch floods, and smoke sensors protect against fire. Each one does one job well.
Start with the basics — contact sensors on entry points and a PIR in the hallway — and build from there. You don’t need to spend £500 on day one. Most systems let you add sensors whenever you want, so begin with the essentials and expand as your budget allows.
If I were setting up a system from scratch for an average UK three-bed semi, I’d go with Ring Alarm for the value, add contact sensors to every external door and the most vulnerable windows, put a PIR on the stairs, and throw in a couple of Aqara water leak sensors for good measure. Total cost: about £250-300 all in, and you’d have a properly secured house.
The important thing is to actually use whatever you buy. The best alarm system in the world doesn’t work if you forget to arm it every night.
